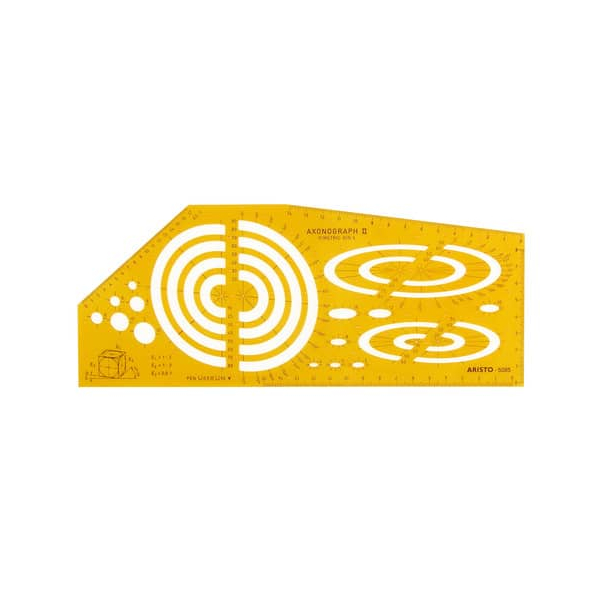

Sie suchen nach einer Schablone, die Ihnen das Zeichnen mit einer Dimetric-Perspektive erleichtert? Dann ist die AR5085 Dimetric Schablone Axonograph von Aristo genau das Richtige für Sie!
Die Schablone besteht aus Kunststoff und hat eine Höhe von 110mm. Sie ist orange/transparent und gehört zur Serie "Schablone Axonograph Dimetric". Mit einer Länge von 270mm bietet sie ausreichend Platz für präzise Zeichnungen.
Die Schablonensymbole haben ein Seitenverhältnis von 1:1:0.50 und bieten eine große Auswahl an Ellipsen mit einem Raumachse von 3 bis 36 mm. Die Achsenverhältnisse der Symbole betragen 9:10 und 1:3.
Der Tuschenoppen befindet sich unterseitig, was ein komfortables Tuschen ermöglicht. Die Schablone ist ebenfalls orange/transparent und hat eine Mindestdicke von 1,0mm.
Mit der AR5085 Dimetric Schablone Axonograph von Aristo wird das Zeichnen in Dimetric-Perspektive zum Kinderspiel. Überzeugen Sie sich selbst und kaufen Sie sie noch heute!
Aristo Aristo in Dreiecke / Lineale / Schablonen anzeigen | |
9003182050857 | |
AR5085 | |
270mm | |
Schablone Axonograph Dimetric | |
orange/transparent | |
Kunststoff Kunststoff in Dreiecke / Lineale / Schablonen anzeigen | |
110mm | |
Schablone Schablone in Dreiecke / Lineale / Schablonen anzeigen |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Produktname
Aristo AR5085 Dimetric Schablone Axonograph
|
